13.56MHz RFID/NFC Card – 1KB-EE1526-DC2R3

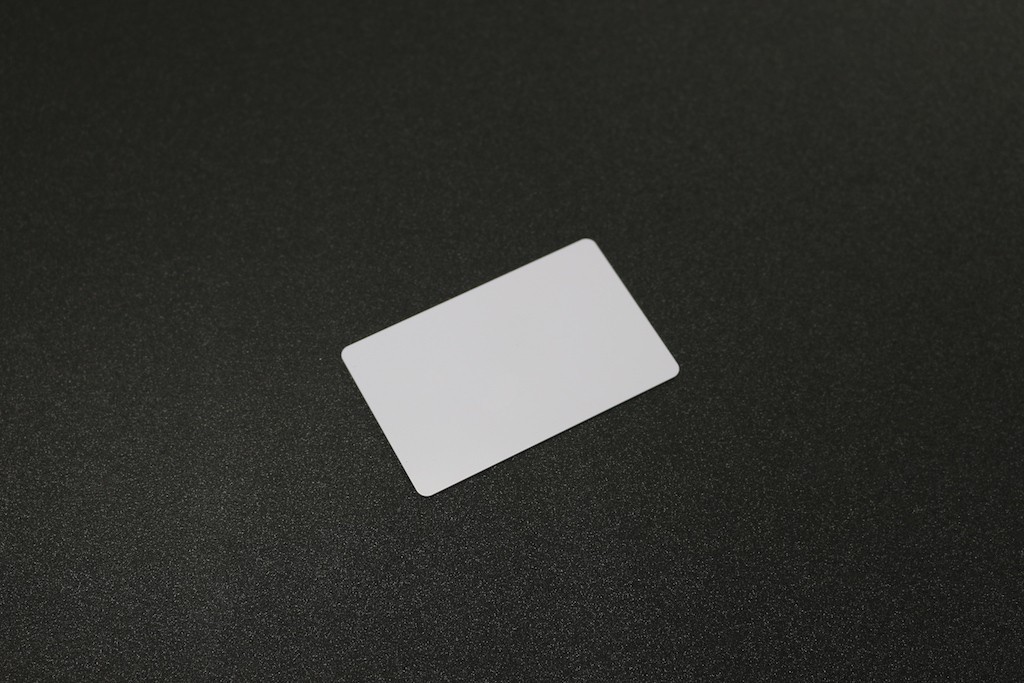

This is a blank 13.56MHz RFID/NFC card – often used for train/bus passes but also found in other systems where a proximity card is desired. The tag contains a small RFID chip and an antenna, and is passively powered by the reader/writer when placed a couple inches away.

These can be read by almost any 13.56MHz RFID/NFC reader but make sure it can handle ISO/IEC 14443 Type a cards as there are a few other encoding standards.

These chips can be written to & store up to 1 KB of data in writable EEPROM divided into banks, and can handle over 100,000 re-writes.

There is also a permanent 4-byte ID burned into the chip that you can use to identify one tag from another – the ID number cannot be changed.

Specification

• Operating Frequency : 13.56MHz
• Storage Capacity : 8Kbit,16 districts,each district two passwords
• Read Distance: 8-10cm
• Card Life: More than 100 000 times
• Data Retention Time  : 10 years
• Typical Applications : patrol,attendance, access control systems,business card, bus card,highway
• Material : PVC
• Size : 85.5 x 54 x 0.82mm/3.4 x 2.1 x 0.03in(L x W x H).
