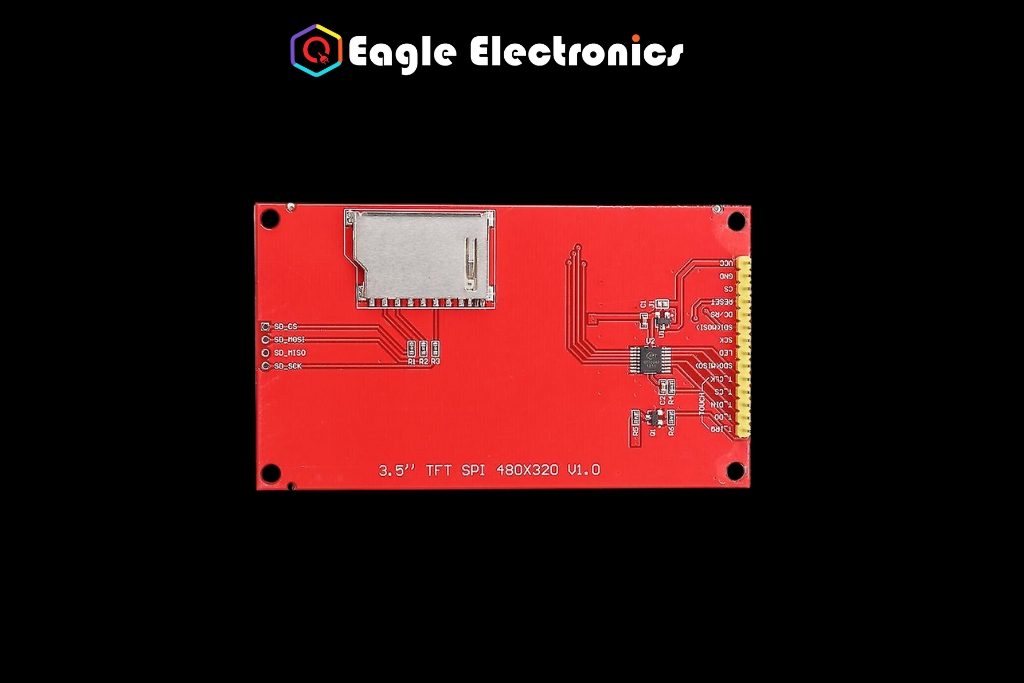

3.5 inch SPI Interface 480×320 TFT Touch Screen Display

With a resolution of 320 (RGB) x 480 dots, the ILI9488 is a 16.7M single-chip SoC driver for Spi TFT Touch liquid crystal display panels. The ILI9488 consists of a power supply circuit, a 960-channel source driver, a 480-channel gate driver, and 345,600 bytes of GRAMME for 320 (RGB) x 480-dot graphics.

Specifications

• Screen Size: 3.5″
• Type: TFT
• Driver IC: ILI9488
• Resolution: 480 x 320 (Pixel)
• Module Interface: 4-wire SPI interface
• Active Area: 48.6 x 64.8mm
• Operating Temperature: -20℃ ~ +60℃
• Storage Temperature: -30℃ ~ +70℃
• VCC Power Voltage: 3.3V ~ 5V
• Logic IO port voltage: 3.3V
• Module Dimensions: 98×56.52x12mm
• Weight: 52g.

Package Includes

• 1 x 3.5″ Inch SPI Touch Screen TFT Display
• 1 x Stylus Pen
