Product details

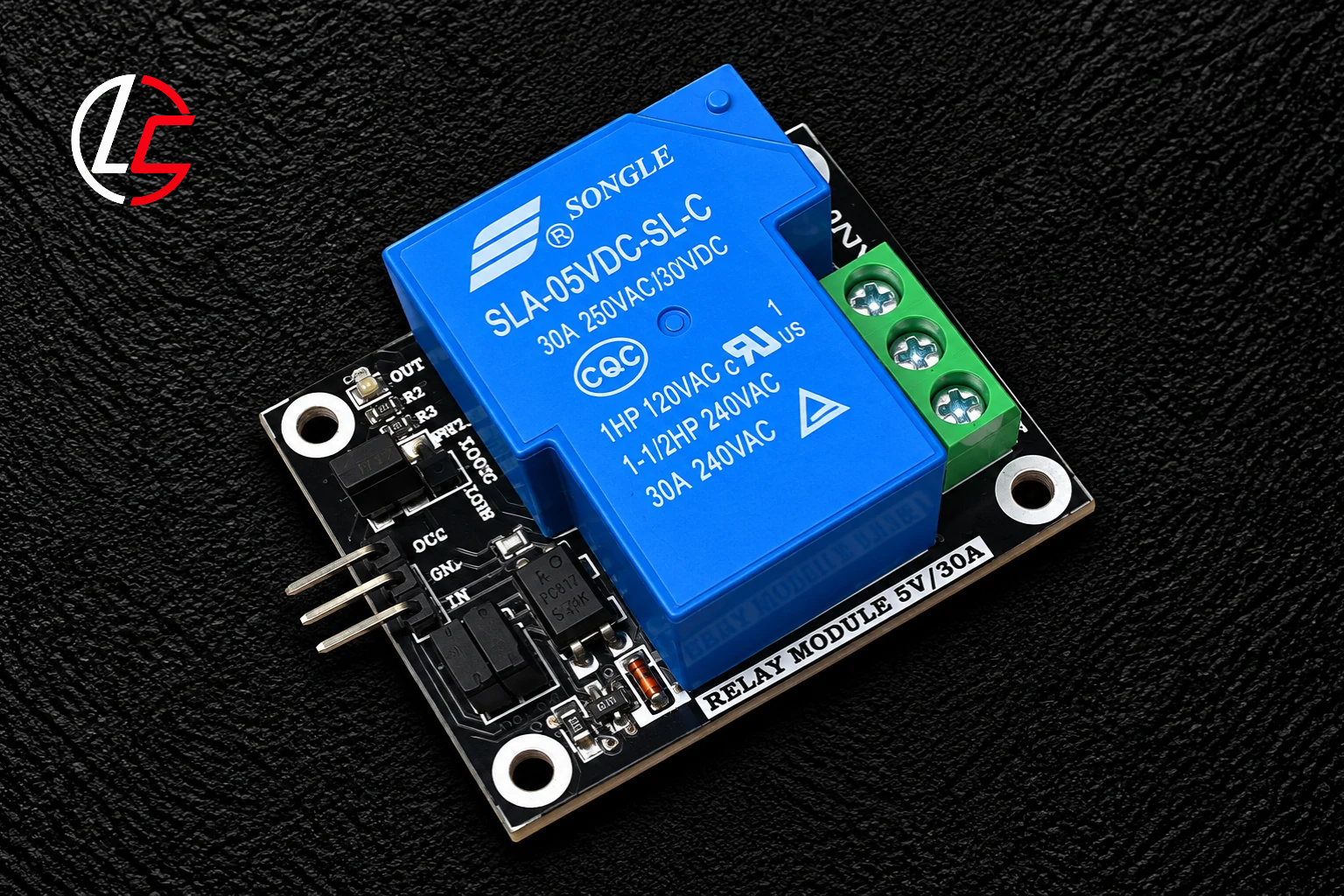

The 5V 30A 1-Channel Relay Module is a high-power switching module designed to control AC and DC electrical loads using a low-voltage control signal. It features a SONGLE SLA-05VDC-SL-C relay, screw terminals for load connections, and a compact PCB with mounting holes.
This module can be used with Arduino, ESP32, PLCs, and other compatible control systems for switching lights, motors, pumps, fans, and electrical appliances. The relay provides NO (Normally Open), NC (Normally Closed), and COM (Common) contacts for flexible circuit control.
Specifications
- Relay Model: SONGLE SLA-05VDC-SL-CNumber of Channels: 1
- Relay Coil Voltage: 5V DC
- Maximum Switching Current: Up to 30A, subject to load type and relay rating
- Maximum Switching Voltage: 250V AC / 30V DC (relay contact rating)
- Contact Type: SPDT
- Output Terminals: NO, COM, NC
- Control Interface: IN, VCC/DC+, GND/DC− (board labeling may vary)
- Relay Coil Power: Approximately 0.9W
- Coil Current: Approximately 185mA
- Contact Material: Silver alloy
- Mounting: PCB mounting holes
- Compatible Platforms: Arduino, ESP32, AVR, PIC, PLCs, and other compatible controllers
- Applications: Home automation, motor control, pump control, lighting, and industrial switching projects.
