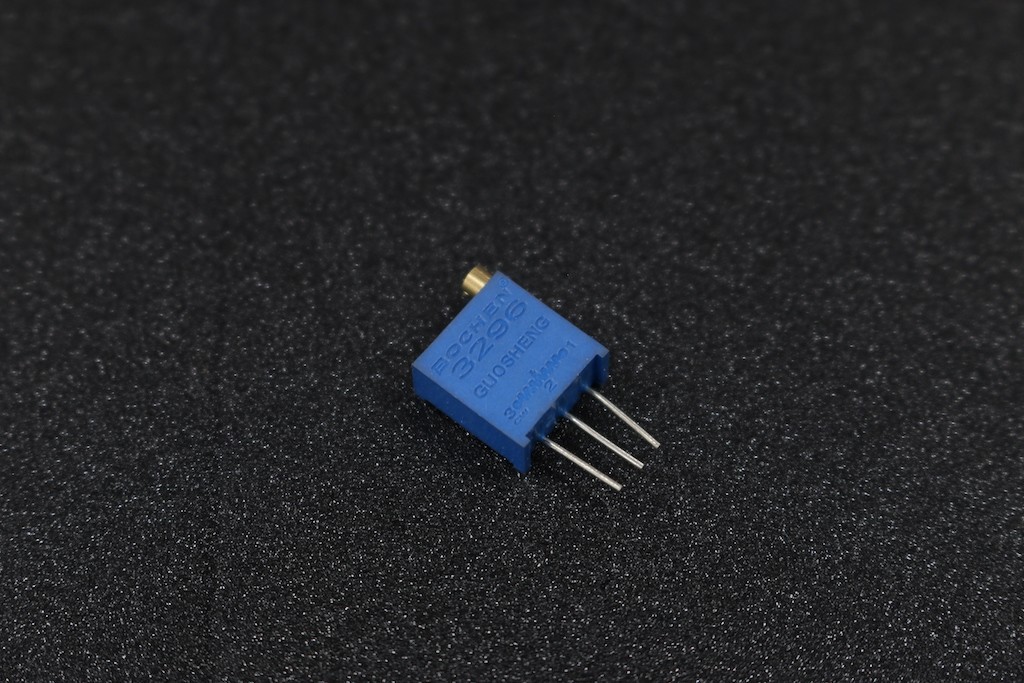

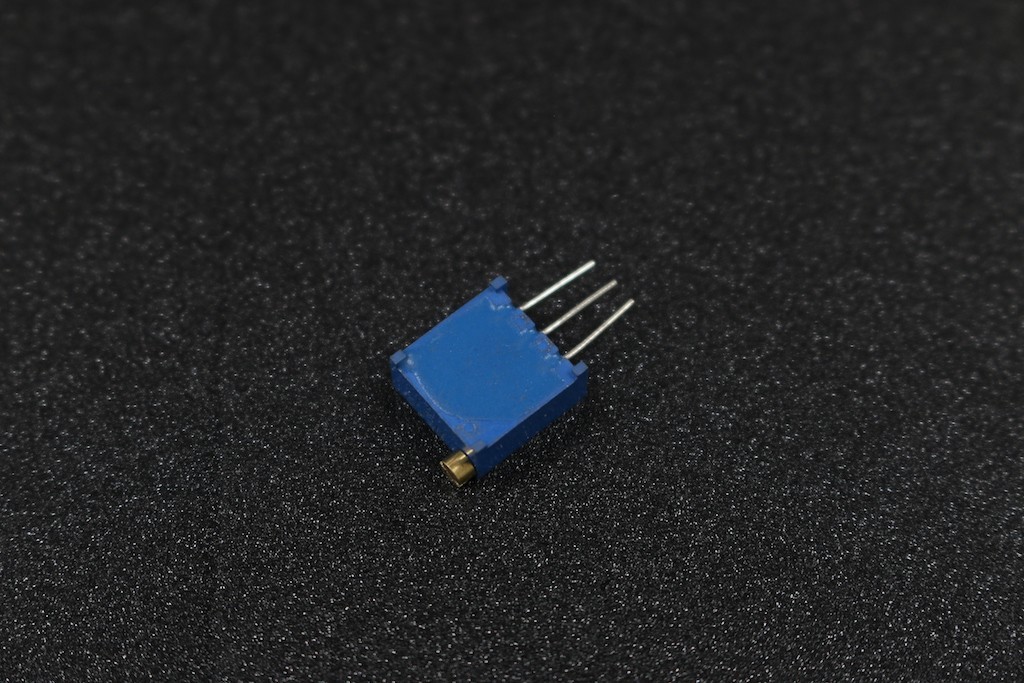

Bourns-3296 Trimp

Bourns Trimpot trimming potentiometers perform a variety of circuit adjustments in all types of electronic equipment. The variety of physical configurations available and the ability to withstand today’s manufacturing environment offers the designer flexibility in selecting the best trimmer for the application. Around the world, trimmers are used in virtually every electronic market. Typical applications include measuring linear distance, angles or rotations in production equipment, industrial test and measurement equipment, and medical equipment.

Specifications

• Preset Type: 3/8inch square potentiometer
• Adjustment Type: Top Adjustment With lead screw
• Number of Turns:25
• Resistance (Ohms): 10 ~ 5M
• Power rating: 0.5Watts
• Mounting Type: Through Hole
• Resistive Material: Cermet
• Resistance tolerance: ±10%
• Temperature Coefficient:±100ppm/°C
• Operating Temperature: -55°C ~ 125°C

Package Content

1 x Bourns 3296 Trimpot

Documents

Bourns 3296 Datasheet
