Product details

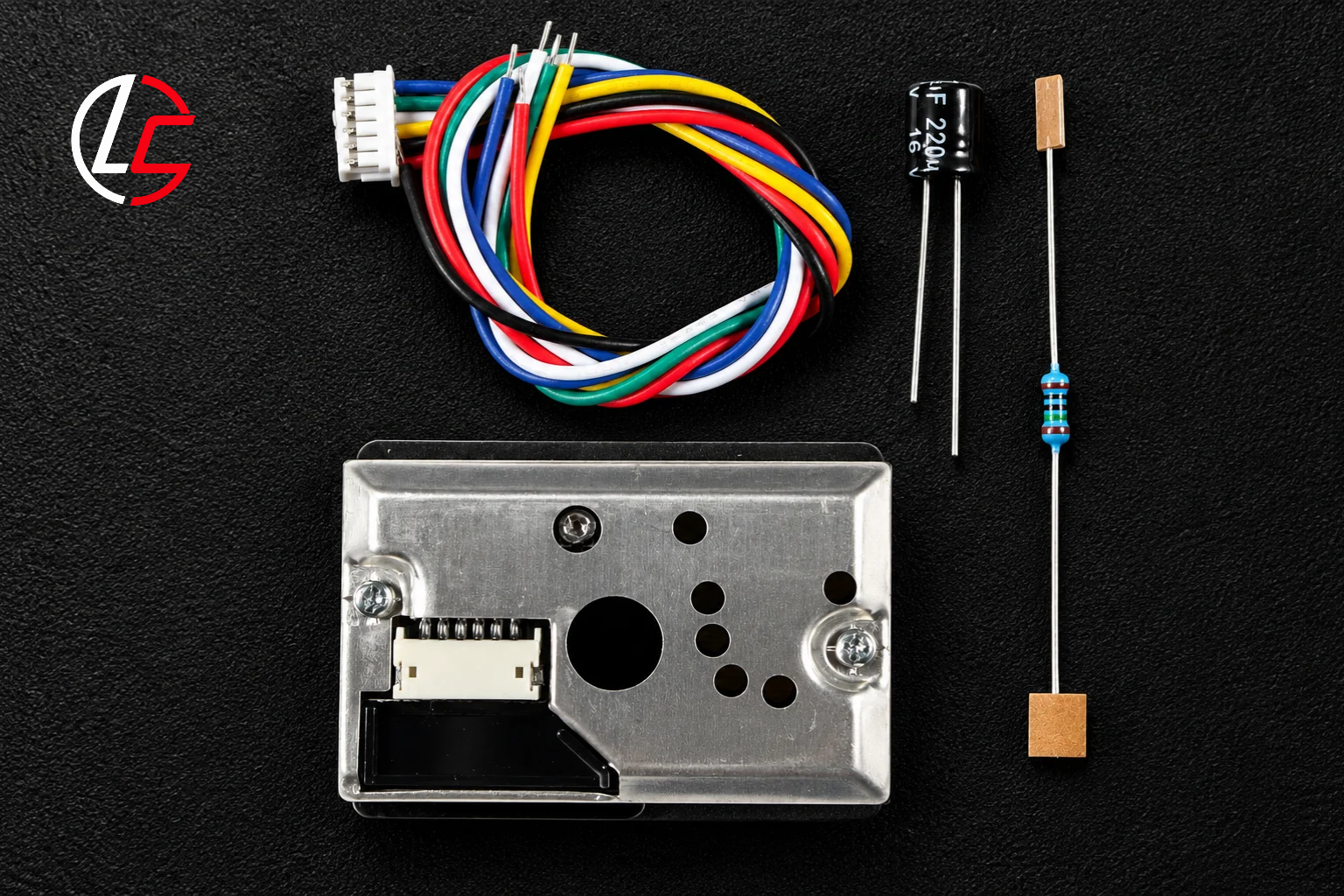

The Sharp GP2Y1010AU0F Optical Dust Sensor is a compact infrared-based sensor designed to detect airborne dust and fine particles. It uses an infrared emitting diode (IR LED) and a photodetector to measure light reflected by particles passing through the sensing area. It provides an analog voltage output that can be processed by microcontrollers such as Arduino, ESP32 (with suitable input scaling), and other embedded systems.
This sensor is suitable for air-quality monitoring prototypes, dust detection systems, air purifiers, air conditioners, and educational electronics projects. It can also help distinguish smoke from ordinary house dust by analysing the output pulse pattern.
Specifications
- Sensor Type: Optical Dust Sensor
- Model Number: GP2Y1010AU0F
- Operating Voltage: 4.5V–5.5V DC
- Recommended Supply Voltage: 5V DC
- Output Type: Analog Voltage
- Typical Sensitivity: 0.5 V per 0.1 mg/m³
- Detection Principle: Infrared LED light reflection
- Maximum Current Consumption: 20 mA
- Operating Temperature: −10°C to +65°C
- Dimensions: Approximately 46 × 30 × 17.6 mm
- Interface: Analog output and LED control input
- Compatible Platforms: Arduino, ESP32 (with suitable voltage compatibility), and other microcontrollers
- Applications: Dust detection, air-quality monitoring, smoke detection experiments, and air purifier projects
- Special Feature: Compact design for embedded systems and DIY electronics projects
Note: The sensor provides an analog dust-density-related output. Calibrated PM2.5/PM10 measurements require additional processing and calibration.
