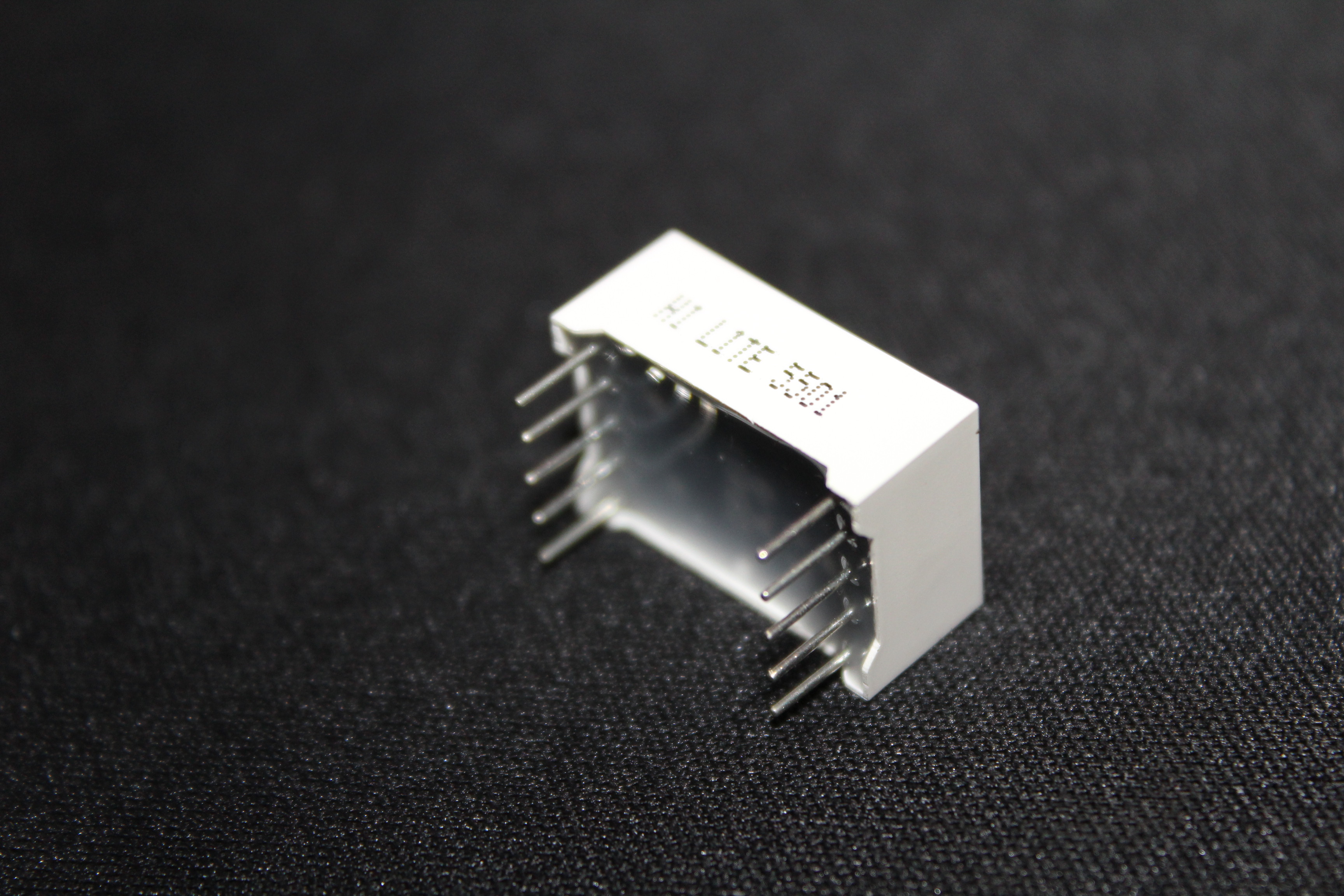

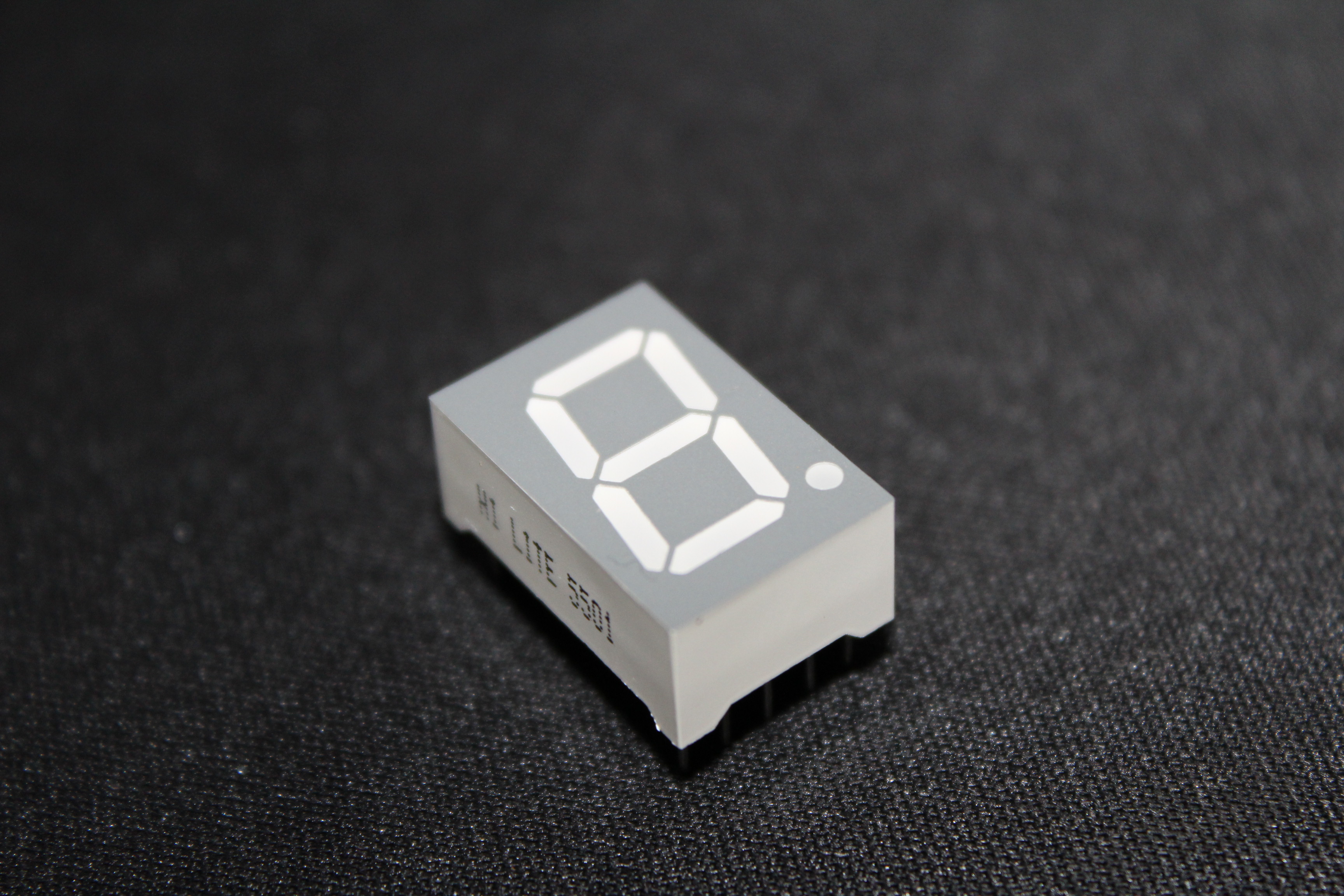

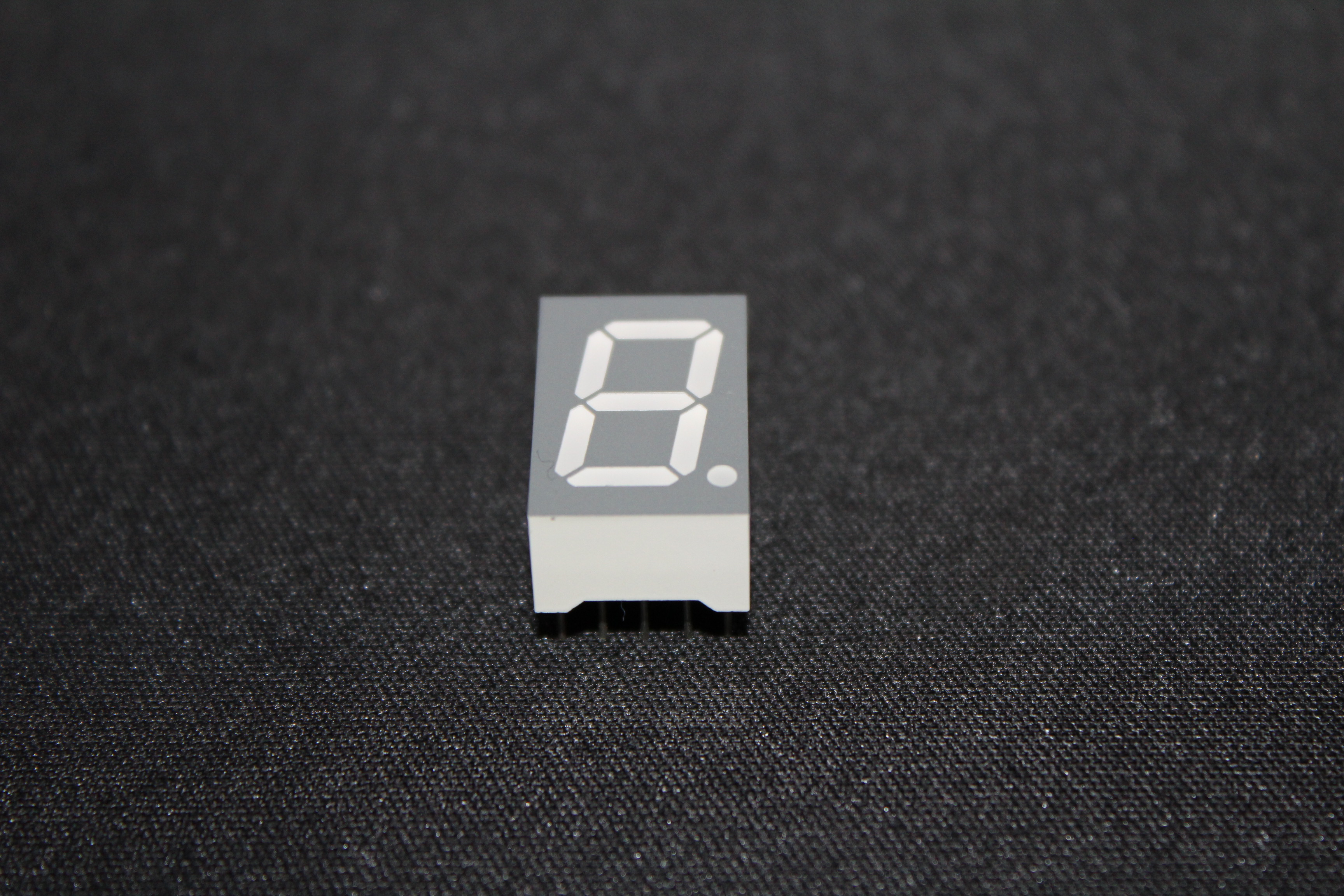

7-Segment Common Cathode Display – RED-EE805C-H3R1

In the common cathode display, all the cathode connections of the LED segments are joined together to logic “0” or ground. The individual segments are illuminated by application of a “HIGH”, or logic “1” signal via a current limiting resistor to forward bias the individual Anode terminals (a-g).

Specifications

• Common Cathode display
• Supports 1 to 8 Digits
• Any combination of individual displays up to 8 total digits
• Displays both hex and integer values
• Supports decimal points built into 7-Segment display
• Display Dimensions (LxWxH in mm): 12.5×7.0x19.0mm
• Weight: 2g.
